venice architecture biennale 2010: canadian pavilion: "

'hylozoic ground', the canadian pavilion at the 12th international architecture biennale in venice, italy

image © designboom

'hylozoic ground', canada's official national pavilion for this year's la biennale di venezia,

is an experimental piece of architecture that explores the qualities of contemporary wilderness.

designed by canadian architect and sculptor philip beesley, the installation is constructed

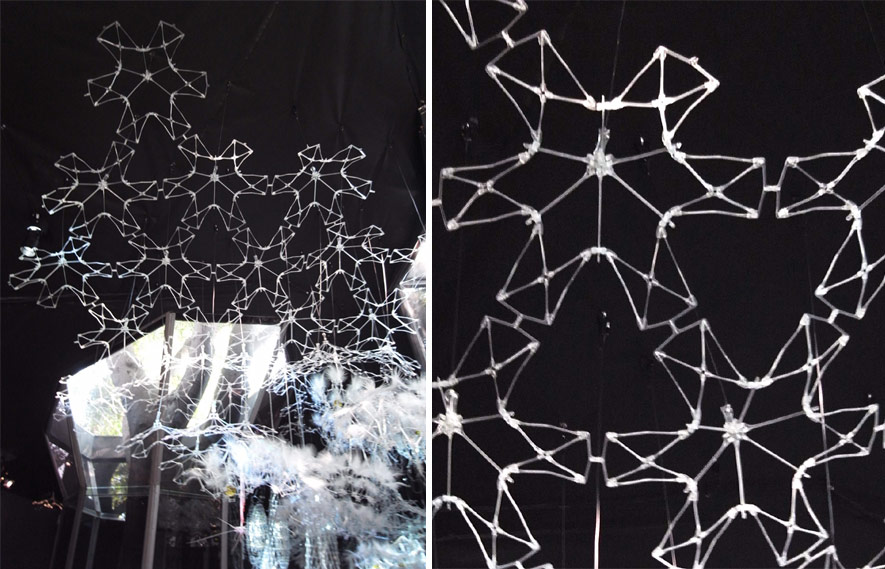

out of an intricate system of transparent acrylic meshwork links, covered with a network

of interactive mechanical fronds, filters, and whiskers.

the root of the project's name, 'hylozoism', refers to the ancient belief that all matter has life.

true to its source, the whole installation functions similarly to a giant lung, breathing

in and out around its occupants. the interactive piece of architecture responds to human

presence and movement by tens of thousands of lightweight digitally-fabricated components

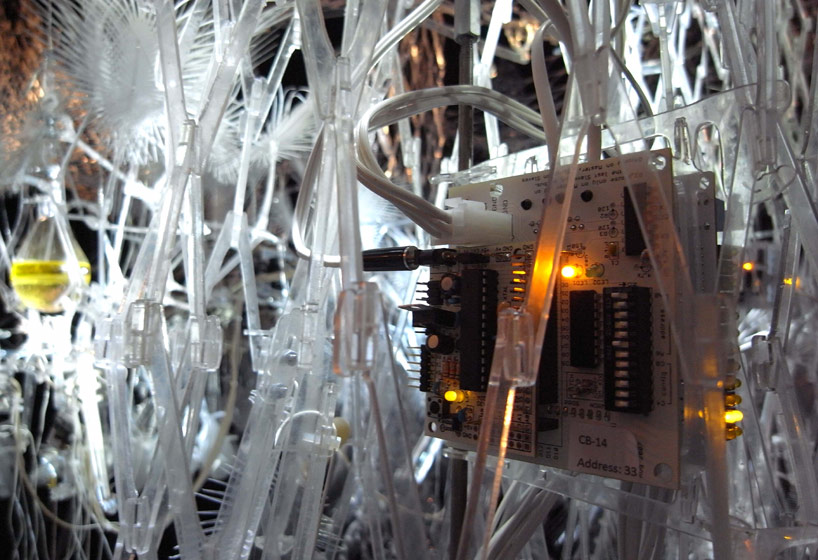

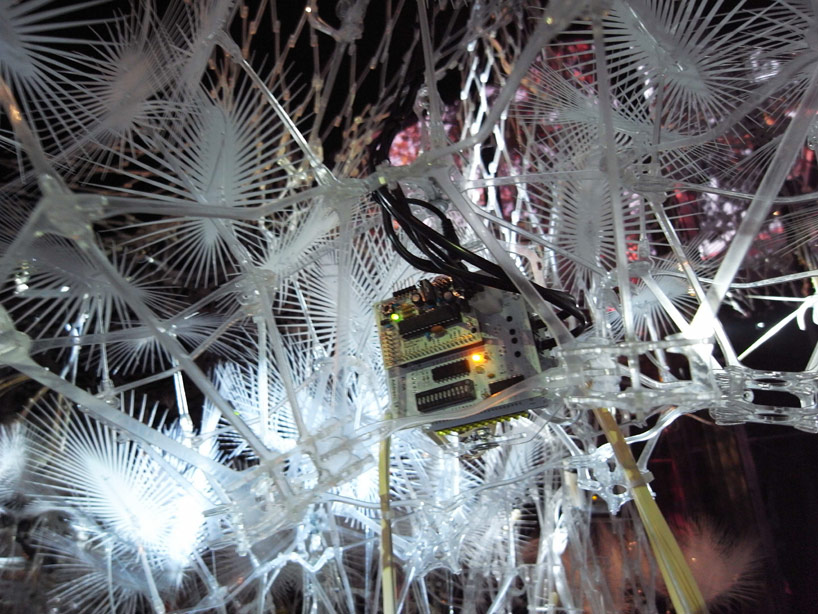

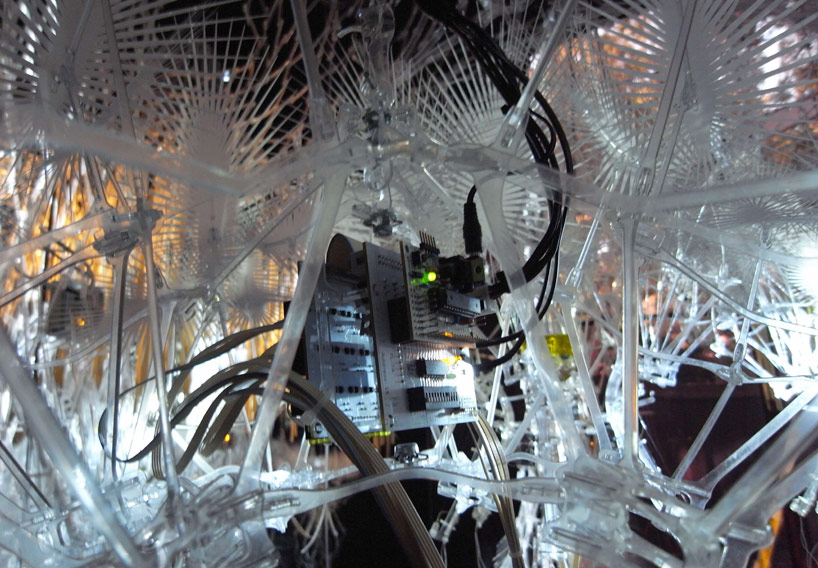

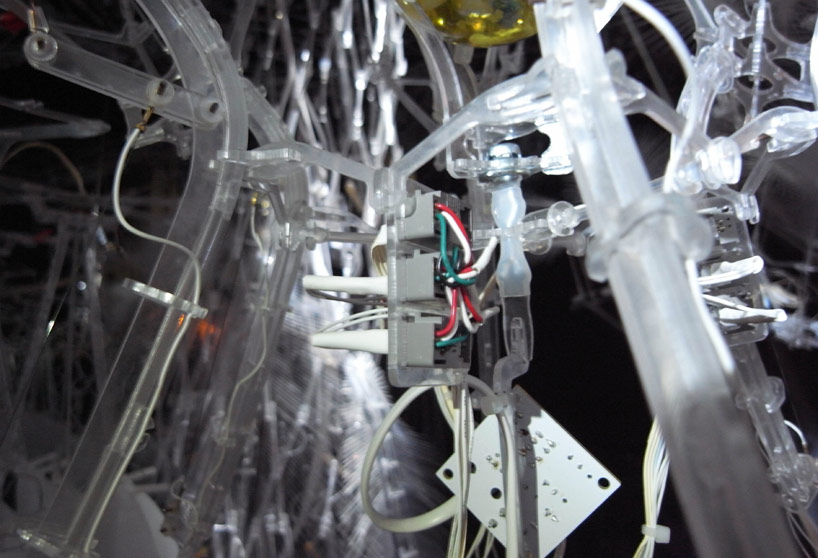

which are fitted with microprocessors and proximity sensors.

'hylozoic soil' explores how the built environment can affect humans on an emotional

and poetic level, bridging the gap between the animate and the inanimate. the technologies

used in the construction of the installation has the potential to be applied and translated

to fields beyond the discipline of architecture such as geotextiles, material science,

environmental engineering, robots, and biotechnology.

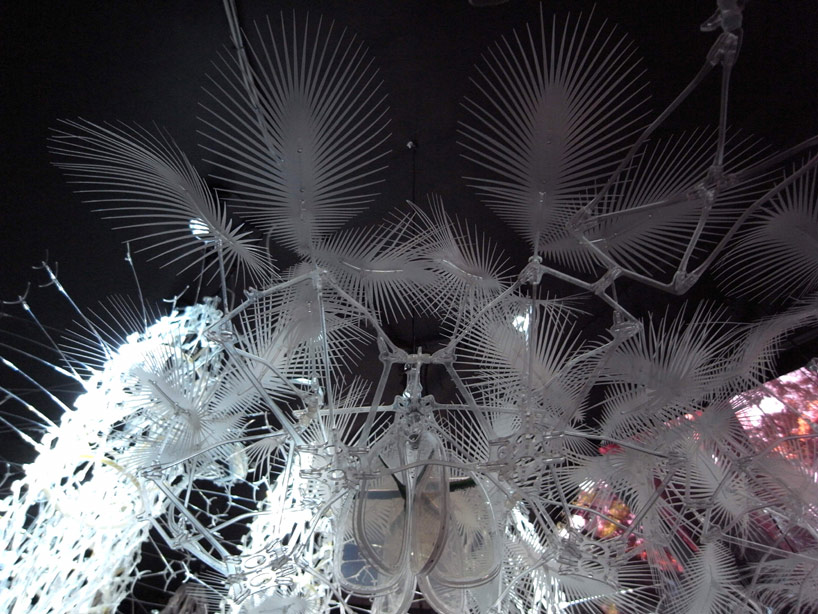

image © designboom

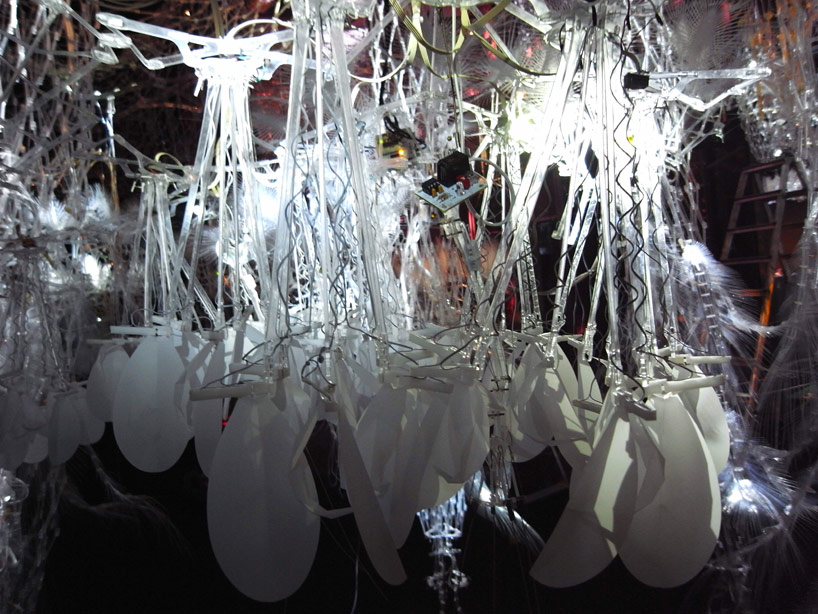

image © designboom

image © designboom

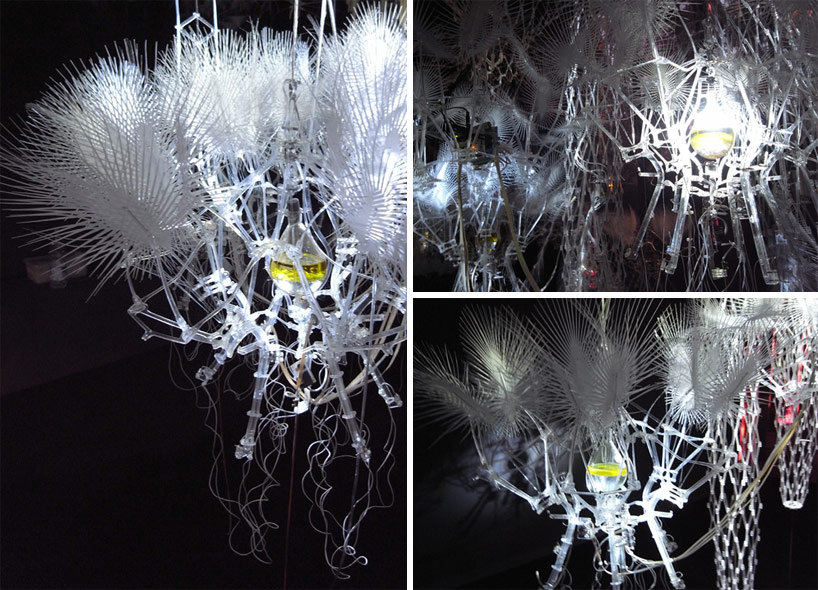

image © designboom

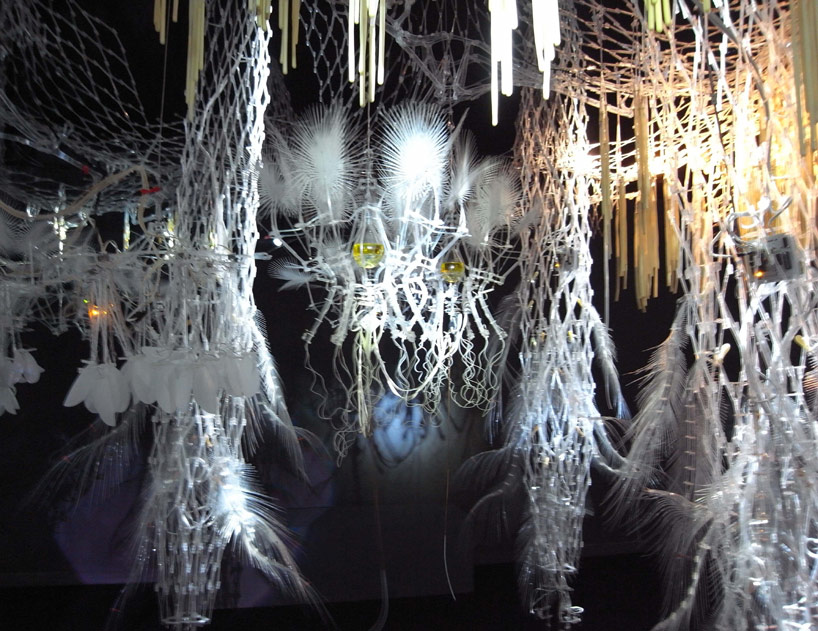

image © designboom

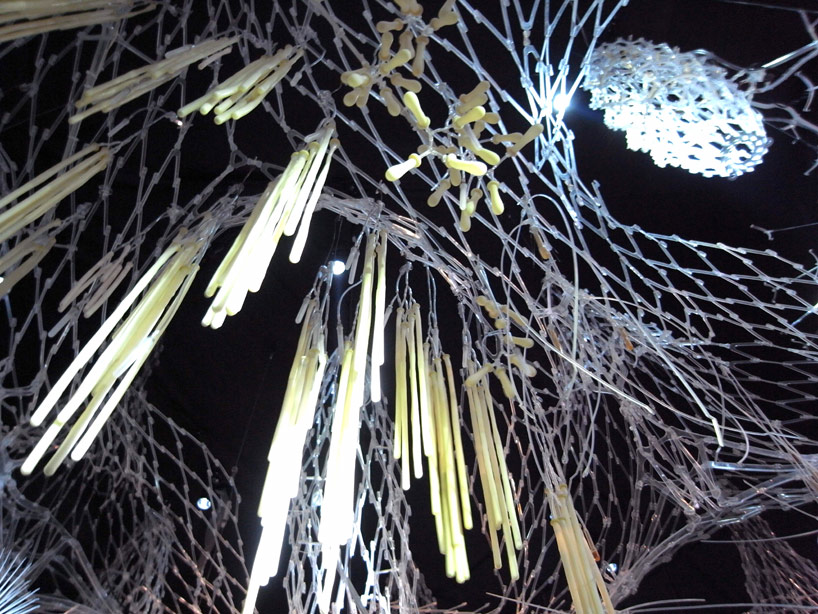

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

image © designboom

all drawings courtesy philip beesley architect

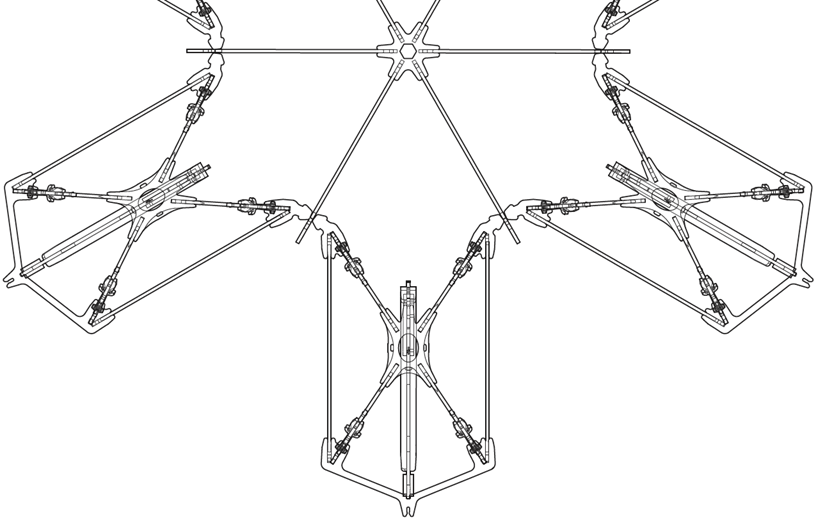

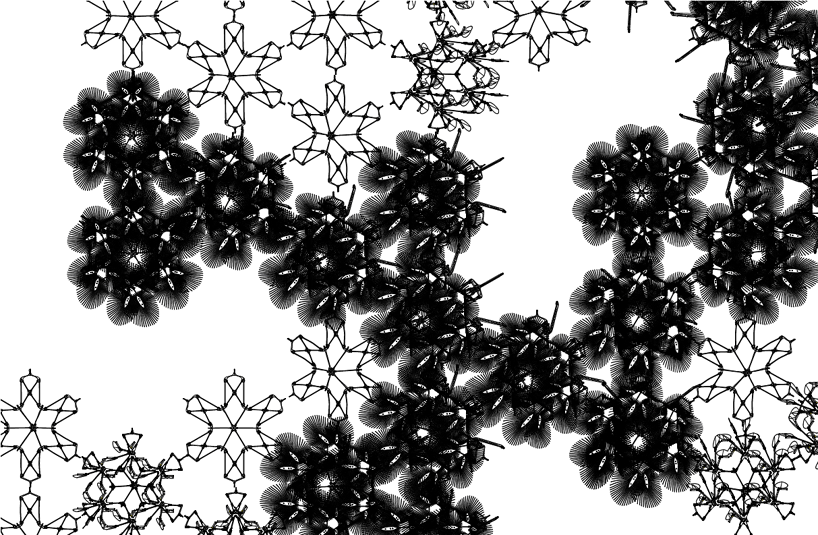

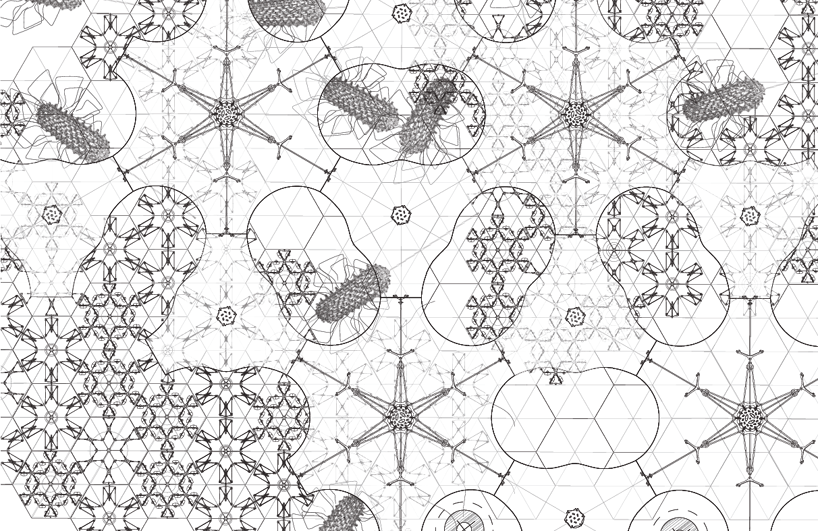

filter cluster plan

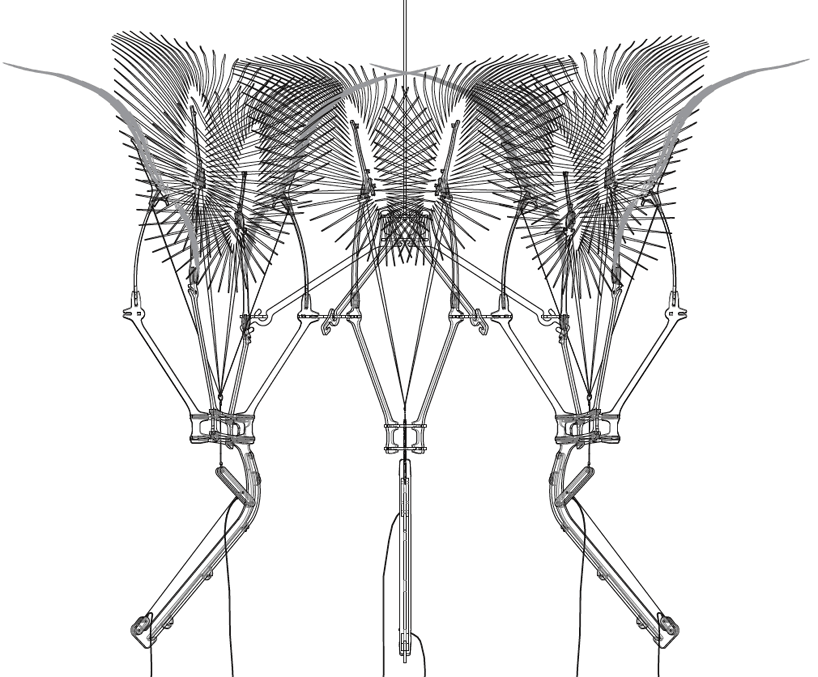

filter cluster elevation

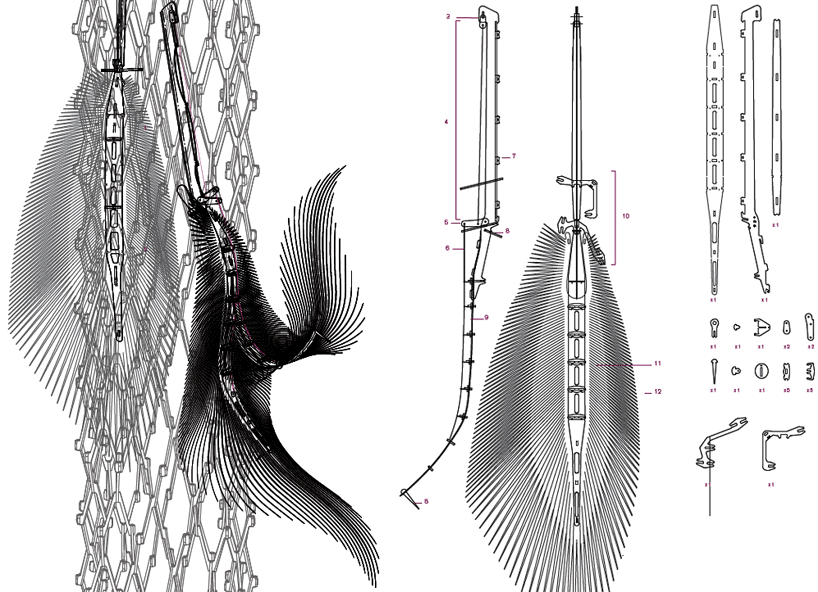

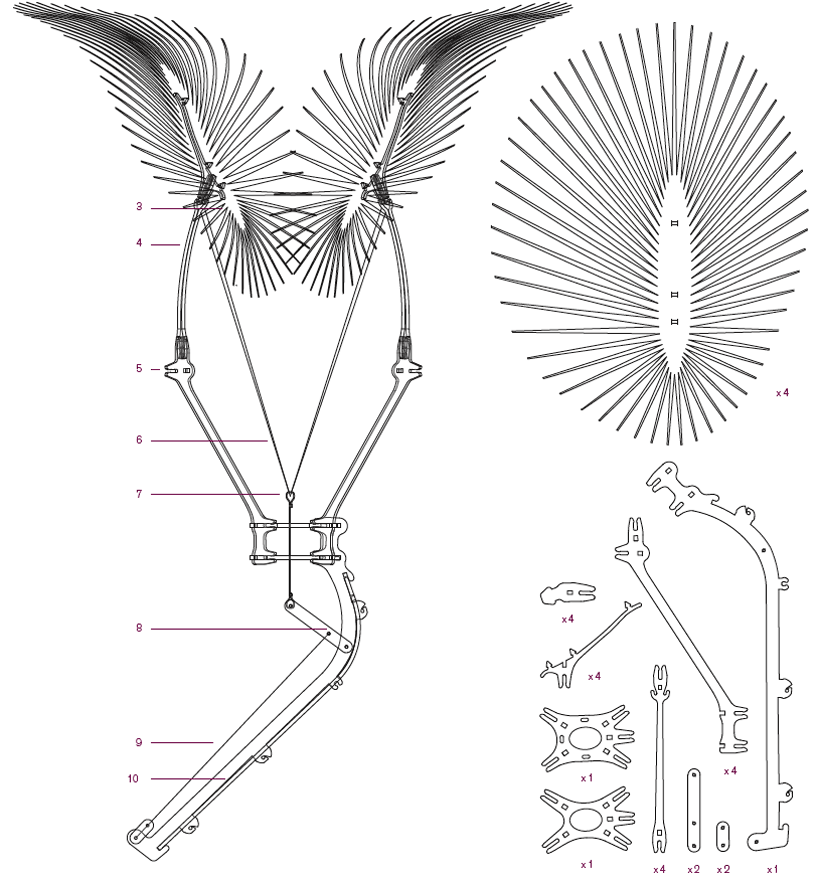

filter layer assembly diagram

(3) filter feather

(4) leaf spring

(5) connection to adjacent filters

(6) tension cable

(7) tension hook

(8) lever arm

(9) shape memory alloy (SMA) actuator

(10) sled assembly

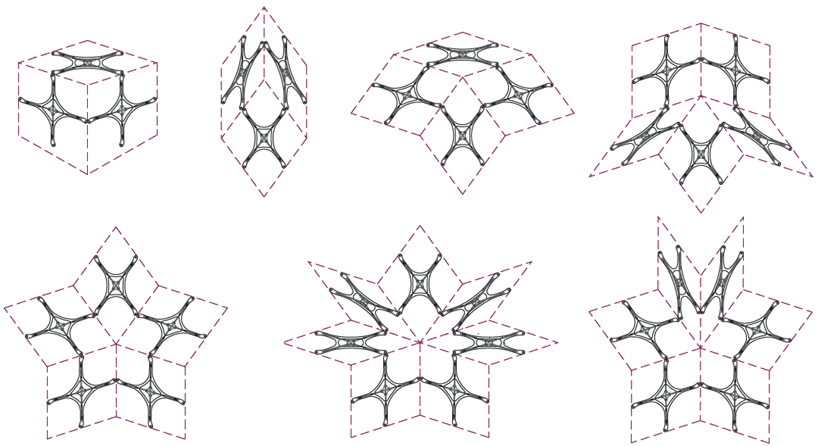

skeleton typical configurations

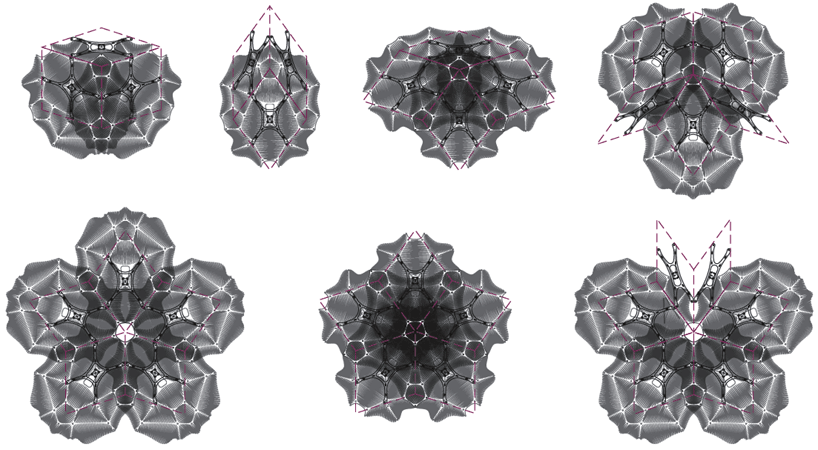

feather typical configurations

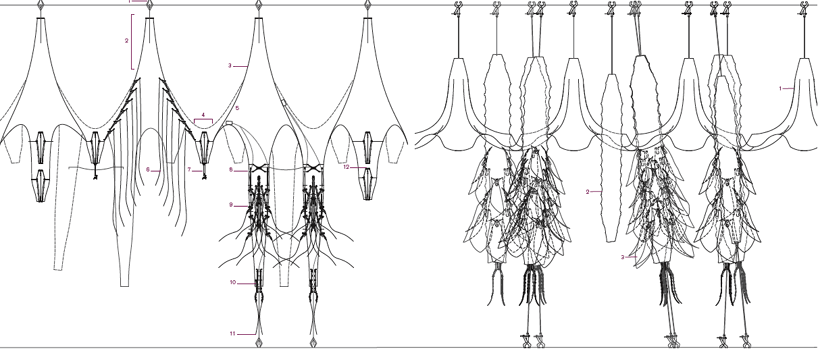

(left) hylozoic section - first generation

(right) hylozoic section - second generation

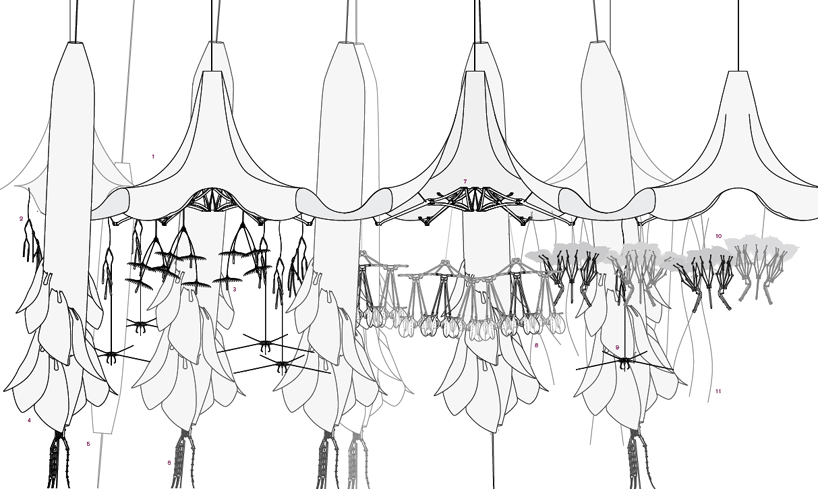

detailed hylozoic section

(1) lily canopy element

(2) anemone weed

(3) hylozoic burrs

(4) breathing pore column

(5) swallowing column

(6) sensor lash assembly

(7) umbrella structural unit

(8) cricket cluster

(9) clamping needle assembly

(10) filter cluster

(11) whisker assembly

breathing pore assembly diagram

(1) breathing pore assembly actuated position

(2) breathing pore assembly rest position

(3) adjustable SMA clip

(4) SMA

(5) lever

(6) tensioned tendon

(7) strengthening gusset for main spine

(8) gland clip

(9) copolyster tongue

(10) tongue clip

(11) arm units for attachment to mesh

(12) tongue struts

(13) feather

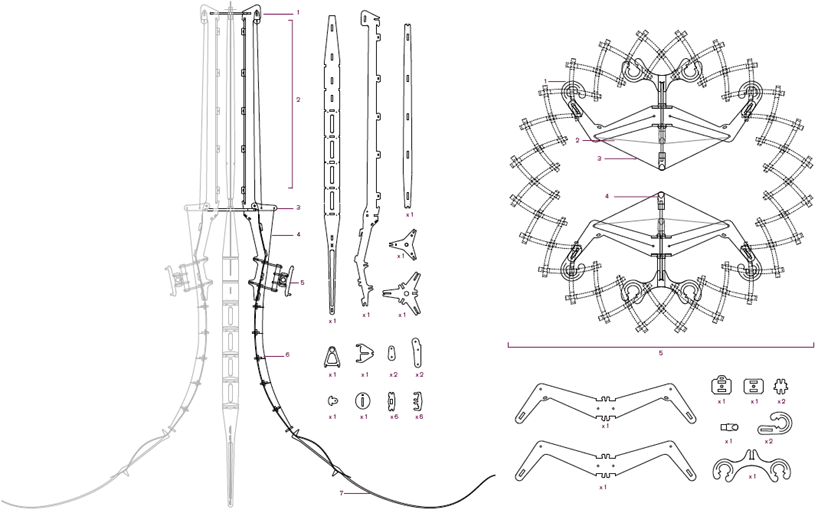

(left) senso lash assembly diagra

(right) swallowing actuator asesmbly diagram - second generation

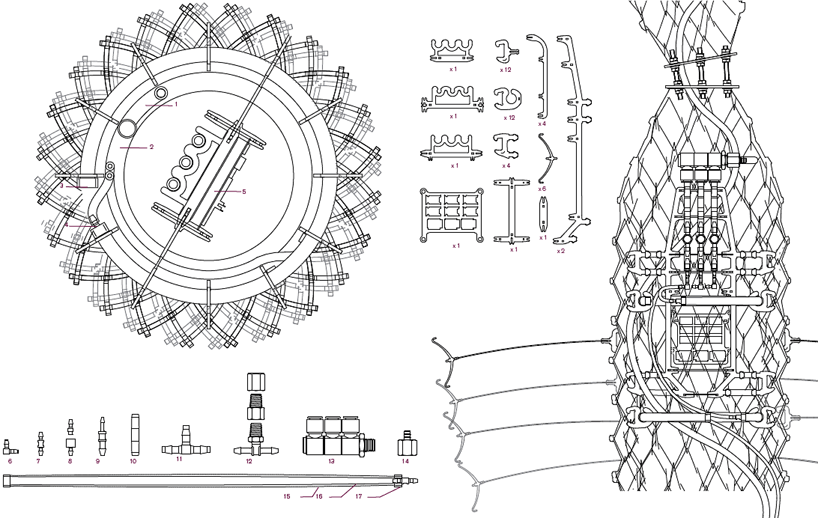

swallowing actuator assembly diagram - third generation

(1) main air supply

(2) main electrical harness

(3) air muscle

(4) local air supply

(5) arduino/SMA valve mount

(6) 1/8'' elbow

(7) 1/8'' coupler

(8) detachable coupler

(9) 1/4'' to 1/8'' reducer

(10) SMA valve

(11) 1/4'' tee

(12) flow reducer/diffuser assembly

(13) 3-way mainfold

(14) threaded adapter

(15) braided polyster sleeve

(16) latex bladder

(17) metal hose crimp

cricket layer assembly diagram

(1) cricket cluster plan

(2) cricket cluster elevation

(3) cricket rhomb

(4) stalk

(5) actuator mount

(6) shape memory alloy (SMA) actuator

(7) cricket resonator

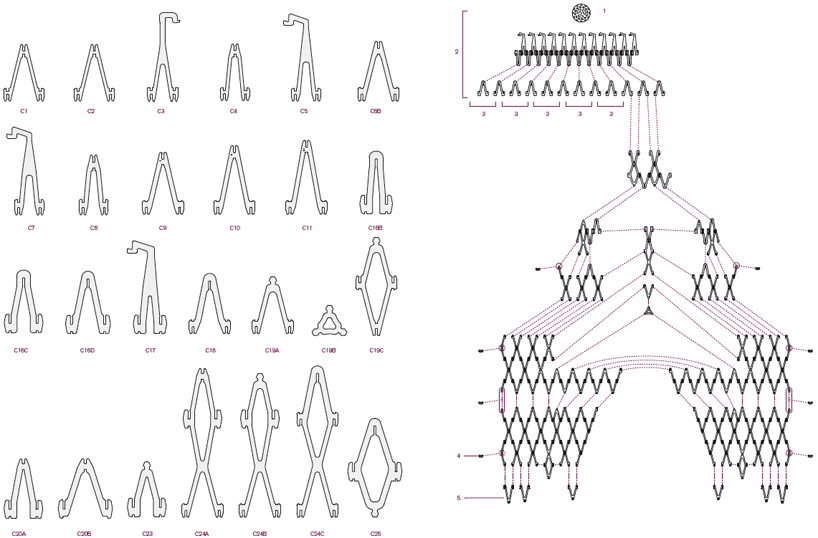

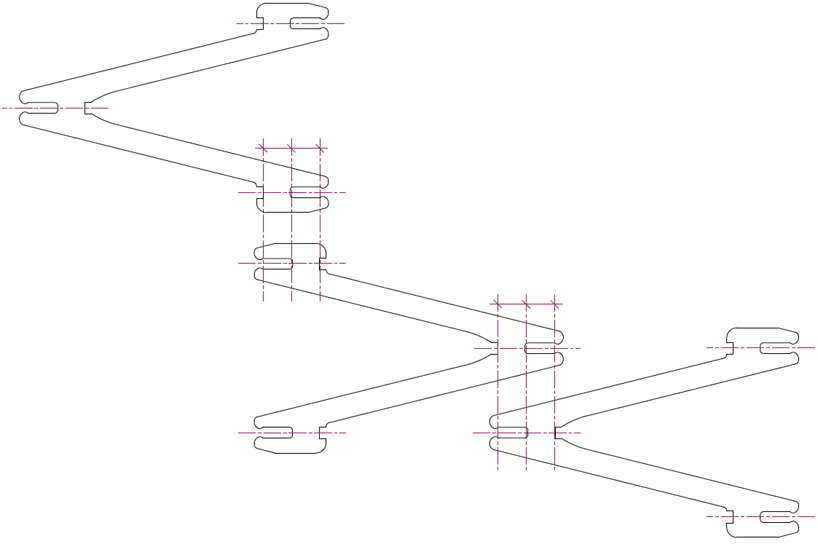

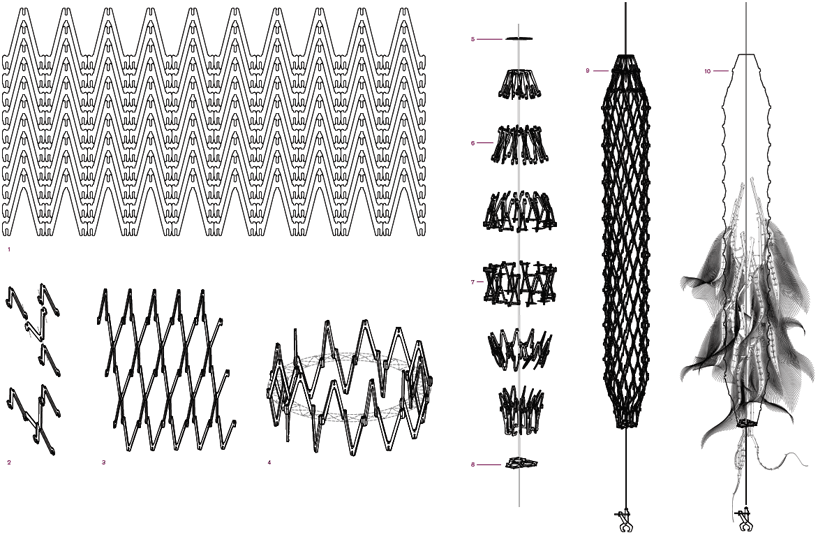

chevron assembly diagrams

(1) chevron cutsheet tessellation

(2) snap-fit assembly

(3) basic mesh assembly

(4) column mesh assembly

(5) column cap plate

(6) transition column taper

(7) basic mesh assembly

(8) kissing pore base plate

(9) column assembly

(10) breathing column assembly

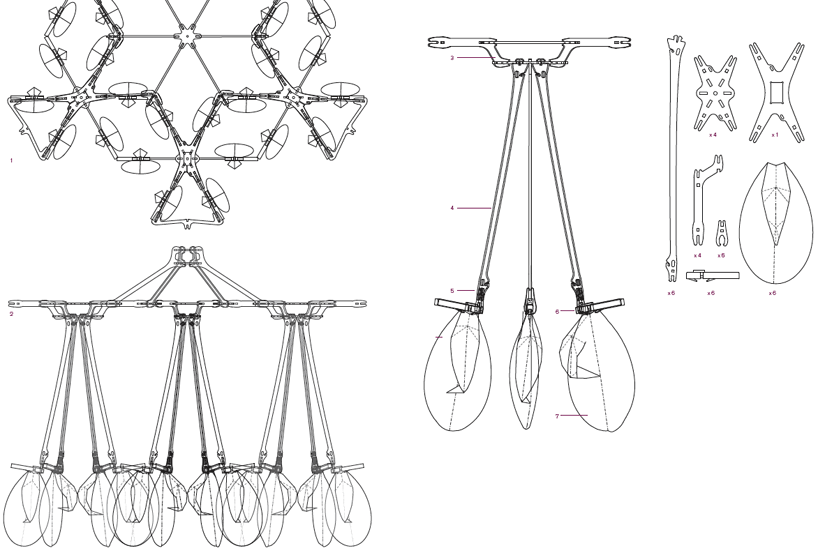

petal assembly diagram

(1) lily cap hanging plate

(2) lily cap assembly

(3) lily petal attachment point

(4) silicon petal attachment point

(5) adjacent canopy attachment point

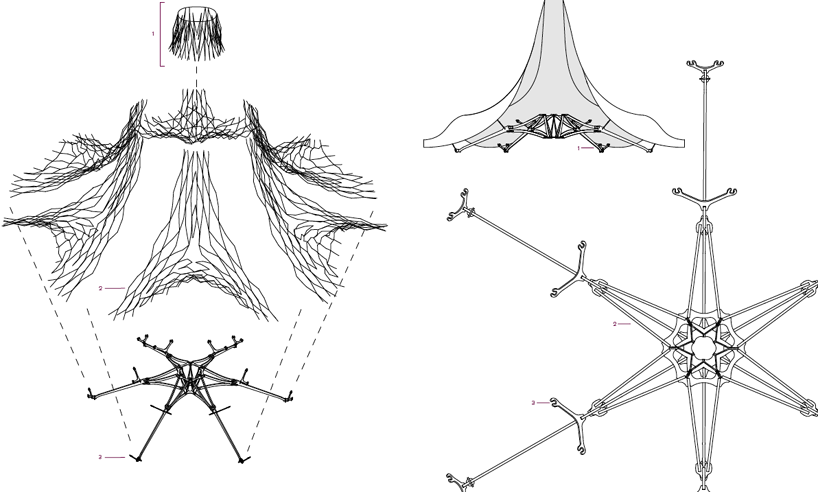

(left) lily canopy assembly diagram

(1) lily cap assembly

(2) lily petal (assembled)

(3) ily umbrella assembly

(right) lily umbrella assembly diagram

(1) filter assembly attachment point

(2) bifurcation members

(3) connection to main lily canopy

(4) main umbrella spine elements

(5) lily canopy assembly

(6) junction plate assembly
